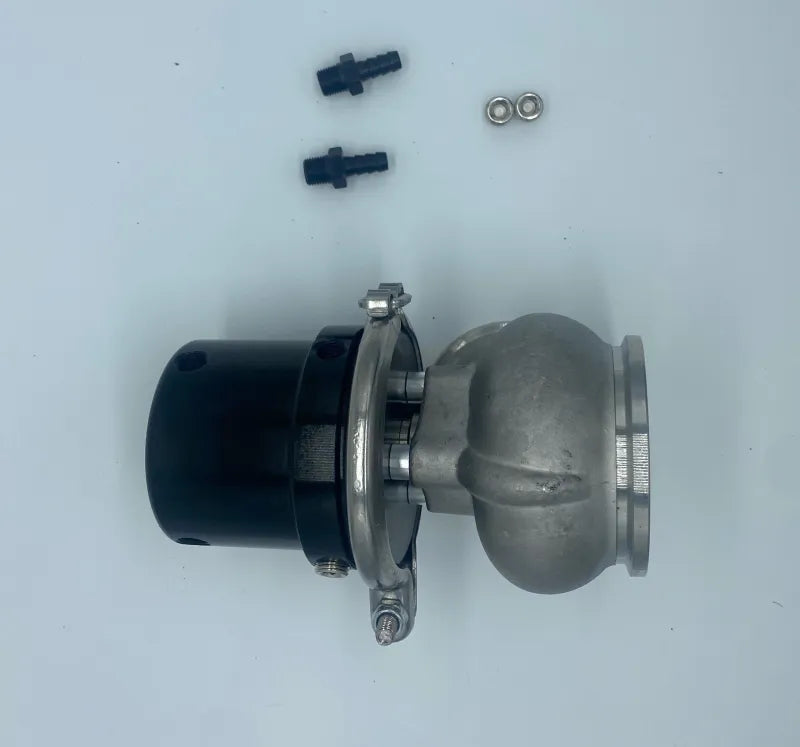

VSR 60mm Wastegate Gen3

VSR 60mm Gen3 Wastegate

New Piston Design Double o-ring  qith quick release v-band top hat

Multiple port configuration for dome sensor and C02 configurations.

Preinstalled 4.6 and 6.4 PSI springs.  CRACKING PRESSURE IS AT 8PSI AND FULL OPEN IS AT 10PSI

If you are using spring pressure – Hook you pressure source incoming usually from turbo to bottom port. You will have 2 ports to select from choose based on your best location and cap the other port. Leave one hole vented on the top and cap the other air port.

Electronic/Dome Pressure setup If you are using a solenoid, you will tee your input to the bottom coming from your pressure source.  Output of your solenoid will go to either of 2 top ports. You will cap the other top port if not being used for a dome pressure sensor.
